Here’s where the stitching part of stitch and glue construction comes in.

Holes drilled in panels, every 6″ using a simple jig made from a piece of scrap wood. In the 14″ nearest the bow and stern tips, the holes are drilled every 2″.
You can see the jig that I referred to in the photo caption above.
The port and starboard panels are clamped together and drilled at the same time so that the holes are in the same locations on both sides of the kayak.
Once all the panels are drilled the stitching together of the panels begins. You can see the middle temporary frame that will help control the shape of the panels as they are stitched together. There are four more temporary frames that will all eventually be added.
In this photo you can see the way that the wires are twisted through the holes to stitch the keel seam together. The rest of the hull (and deck) are stitched in the same way. The twists in the wires at the bow and stern will face out of the hull as there will be no room to twist them from the inside.

Panels sanded and shear seams beveled.

Posted on by
Reply

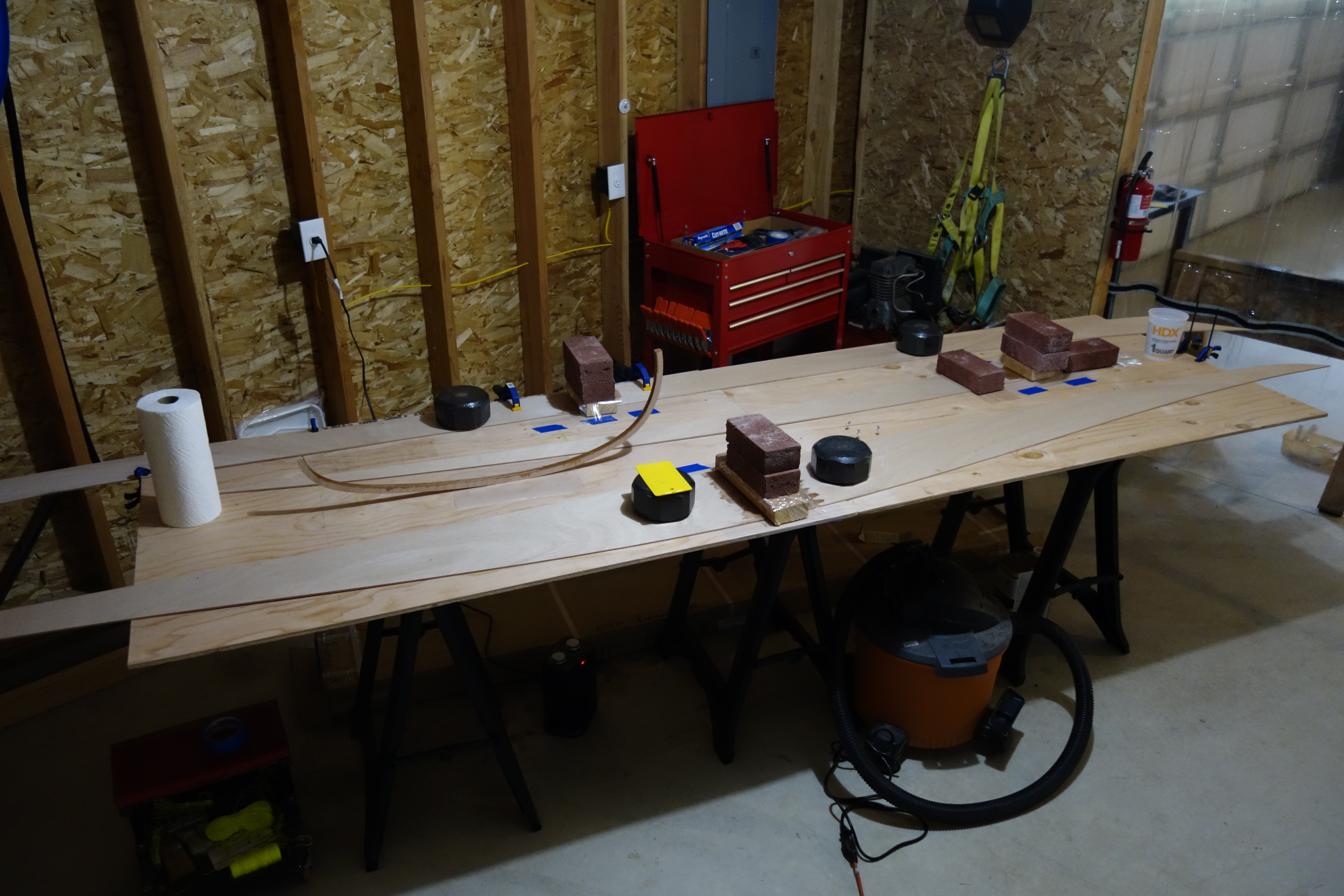

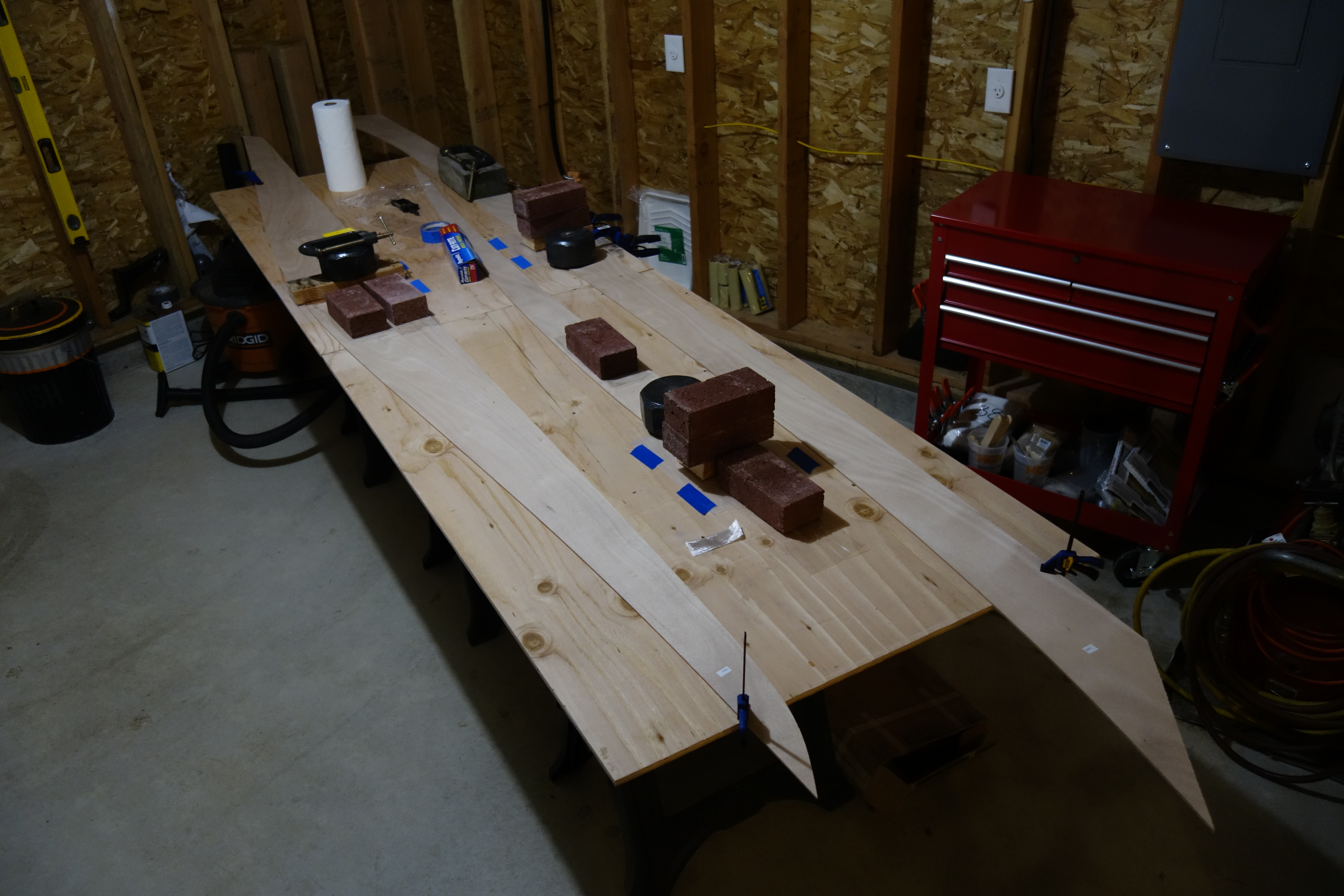

The panels are all glued to their full lengths. The panels that meet at the shear seam all get beveled so that when the deck is epoxied to the hull the panels will meet correctly. Sorry about the terrible photos. Taking pictures in a dark garage leaves a lot to be desired.

Detail of cockpit apron glue up.

Posted on by
Reply

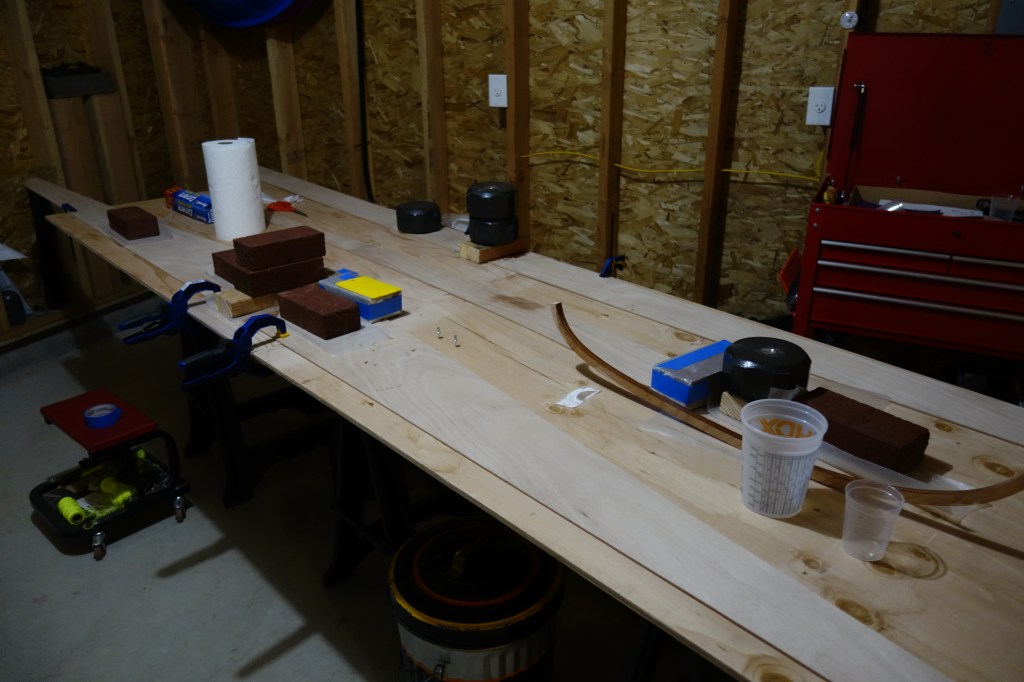

This photo show a bit more detail of the panel gluing process. Epoxy won’t stick to wax paper, so I use that between the epoxy and anything I don’t want it to stick to. As you can see, the weights are improvised. I sawed apart a couple of 20 lb. dumb-bells that I no longer use for weight lifting, so that I would have four 10 lb. weights. For additional weights, bricks were easily acquired and very inexpensive.

Continuing to glue panels.

Posted on by
Reply

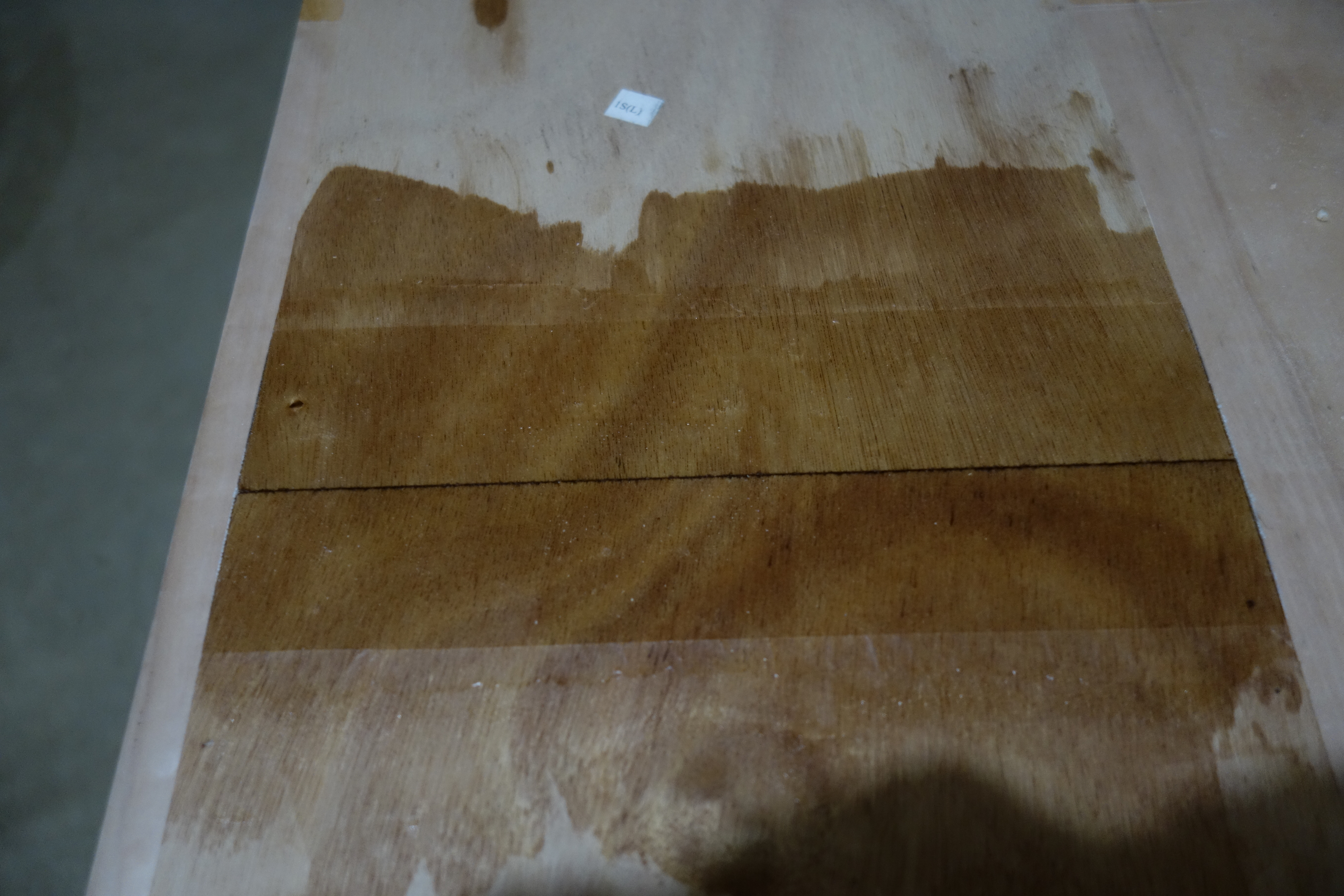

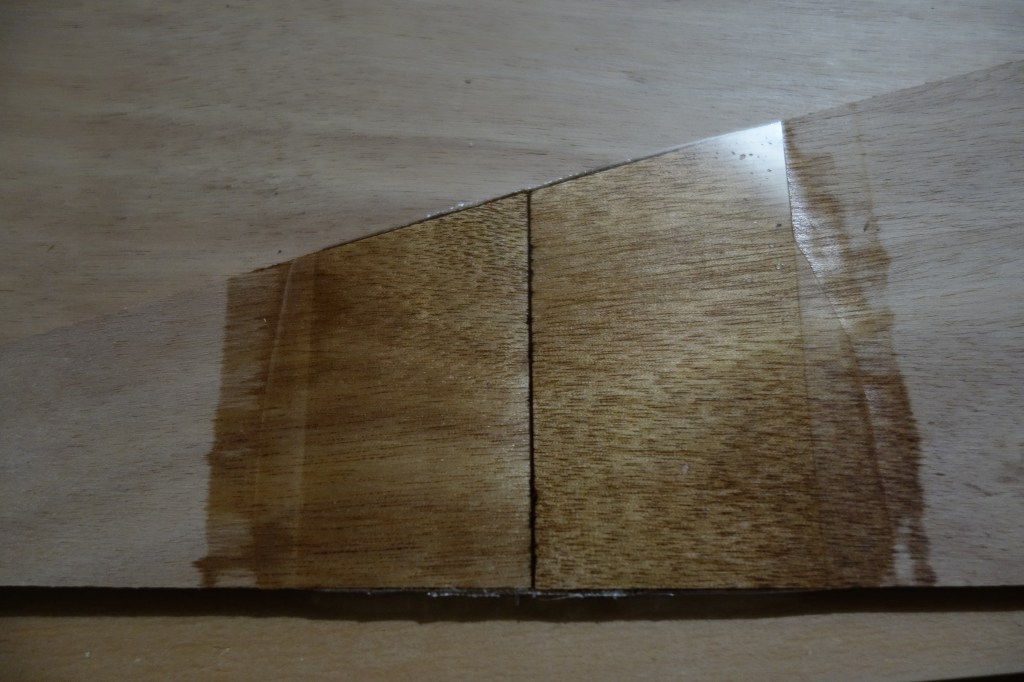

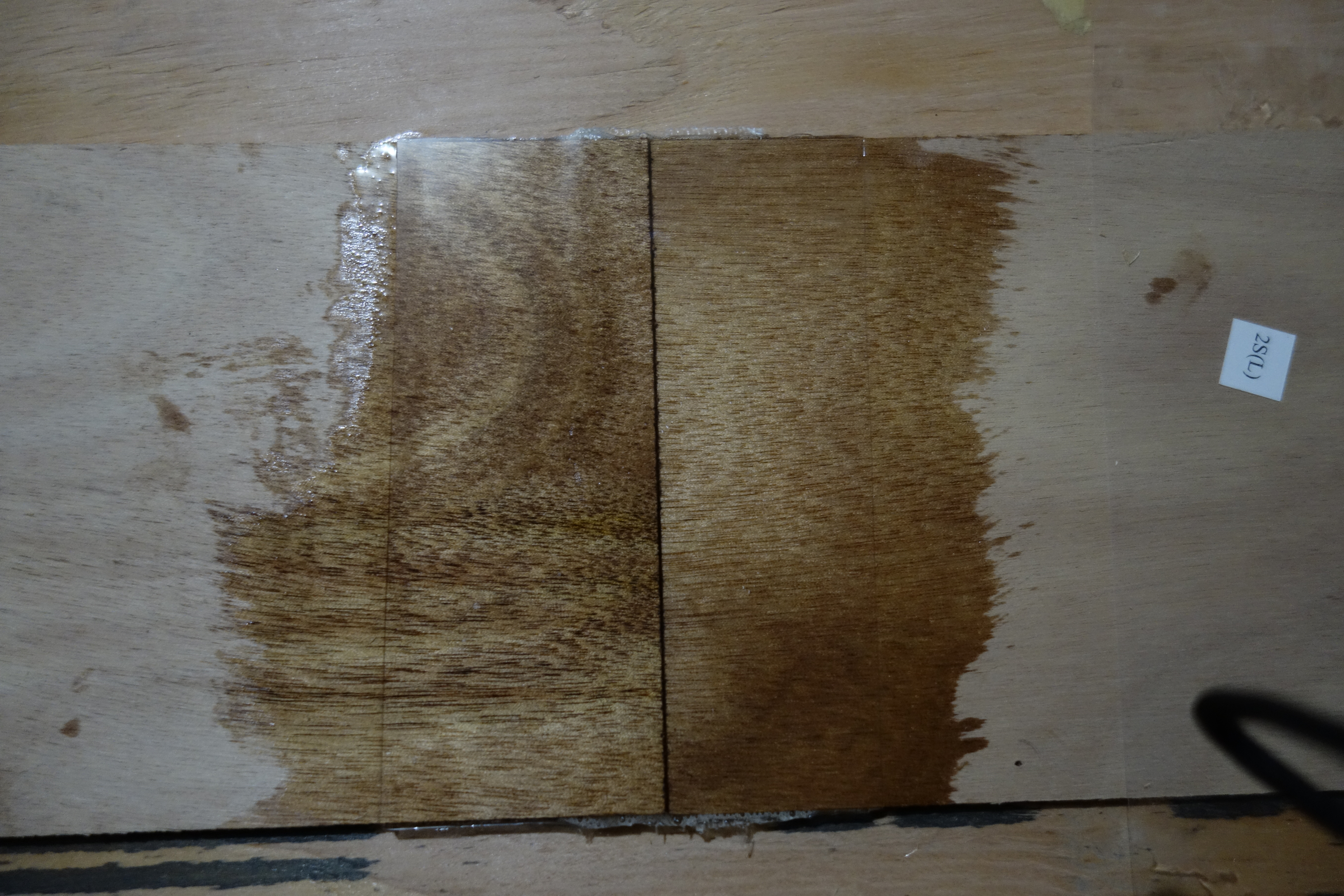

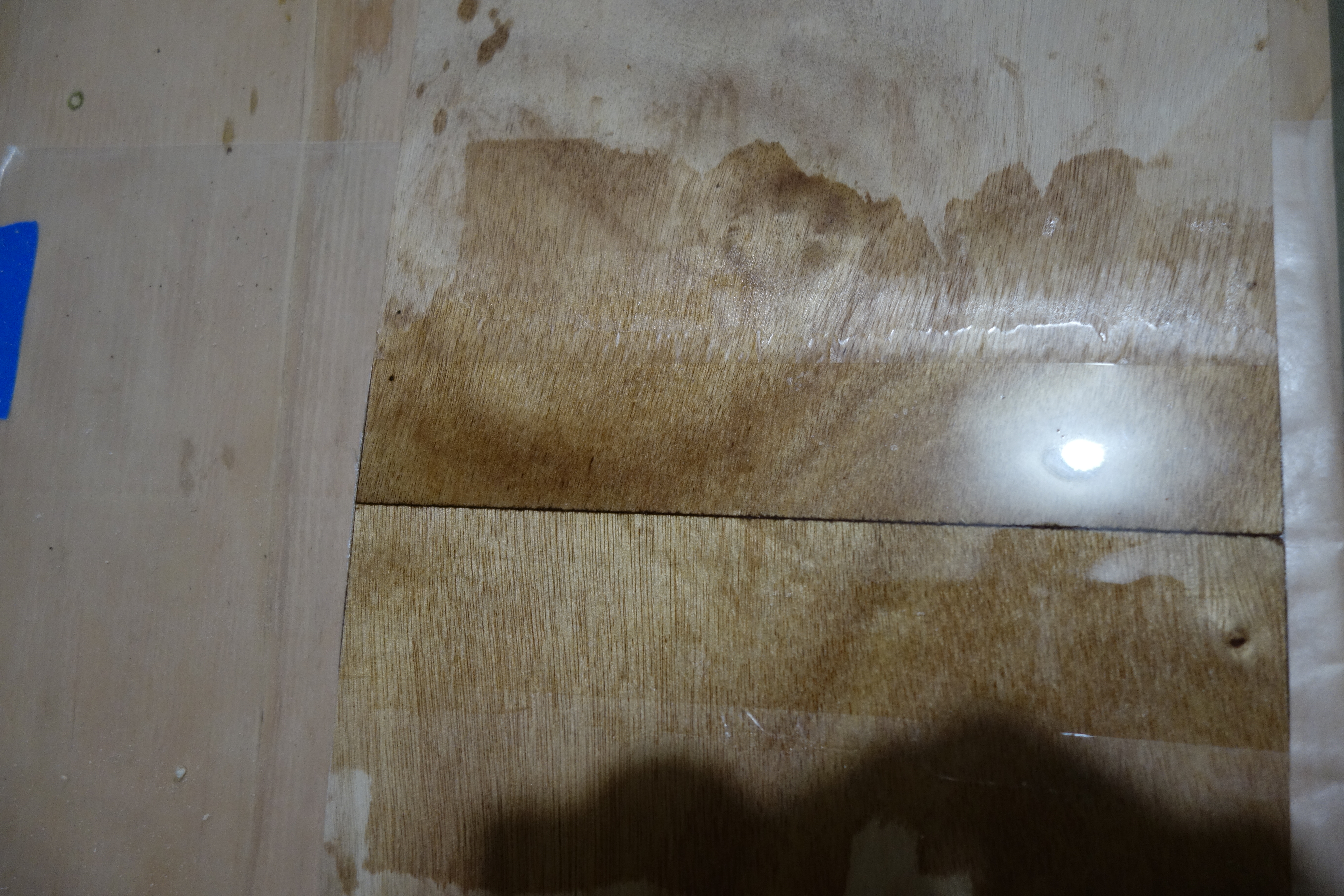

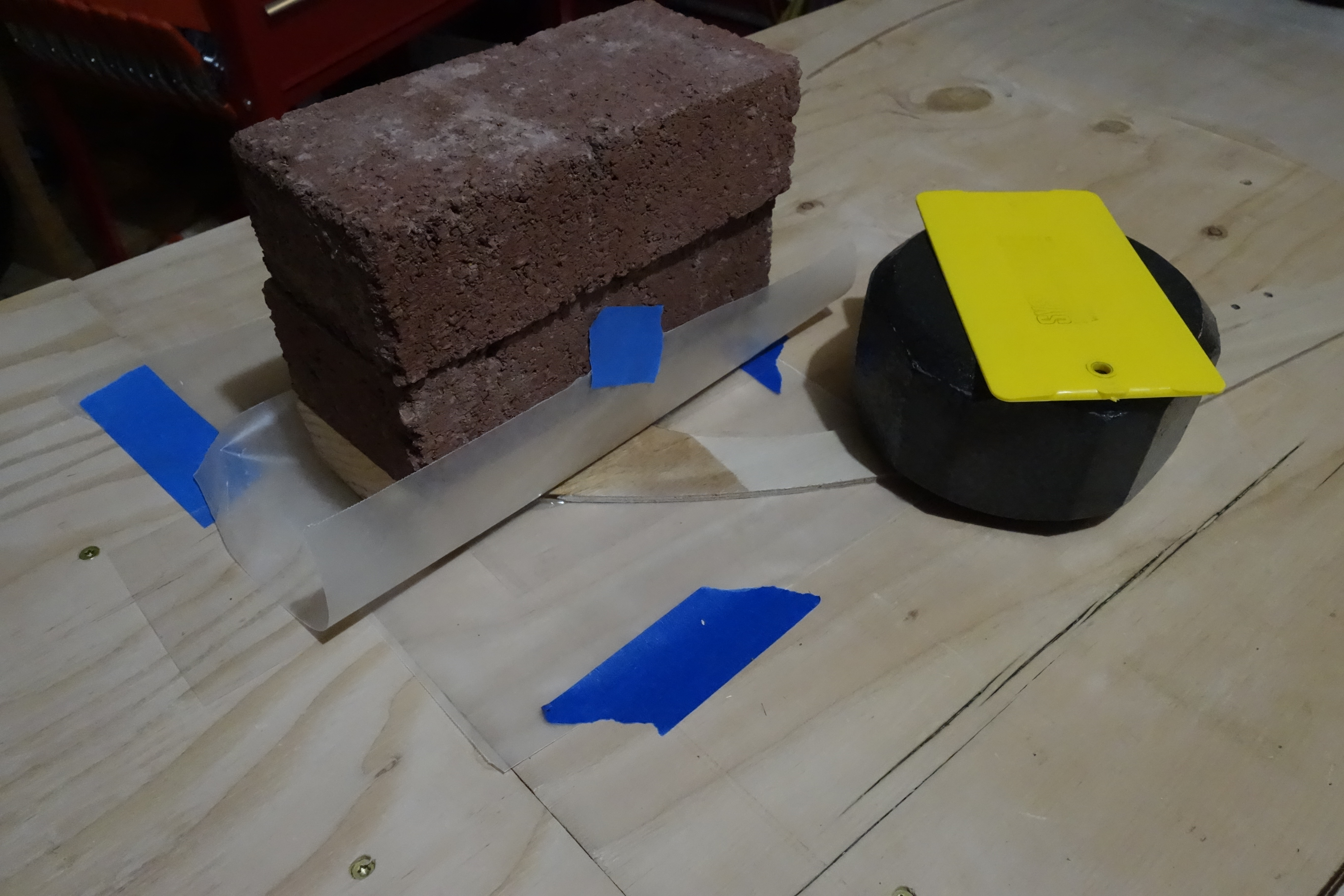

What you are seeing here is the butt seam where two halves of a panel are glued together. The reason that it looks so uniform, almost like a sheet of glass, is that the seams are joined by a strip of light fiberglass tape, which is thoroughly wetted out with epoxy, and then epoxy is liberally applied (piled up for want of a better term) for a couple of inches on both sides of the tape. The epoxy and fiberglass are then covered with a piece of 4″ wide mylar, which the epoxy will not stick to, and then weighted down with a few bricks or some other weight. After the epoxy cures, the tape is completely invisible and it looks like this! The edges are then “feathered in” so that the transition between the wood and the epoxy layer is smooth. This process is repeated on the other side of each panel.

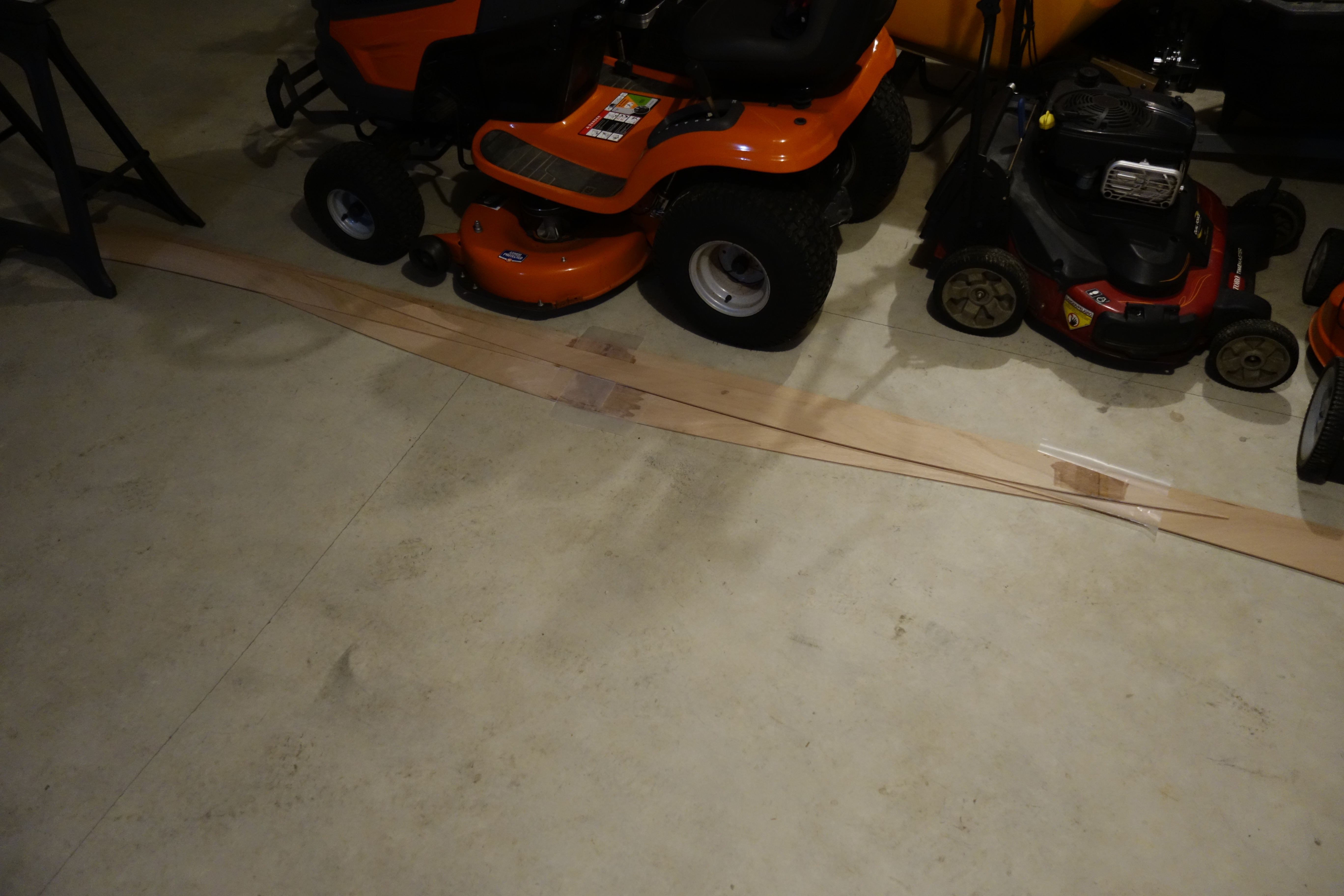

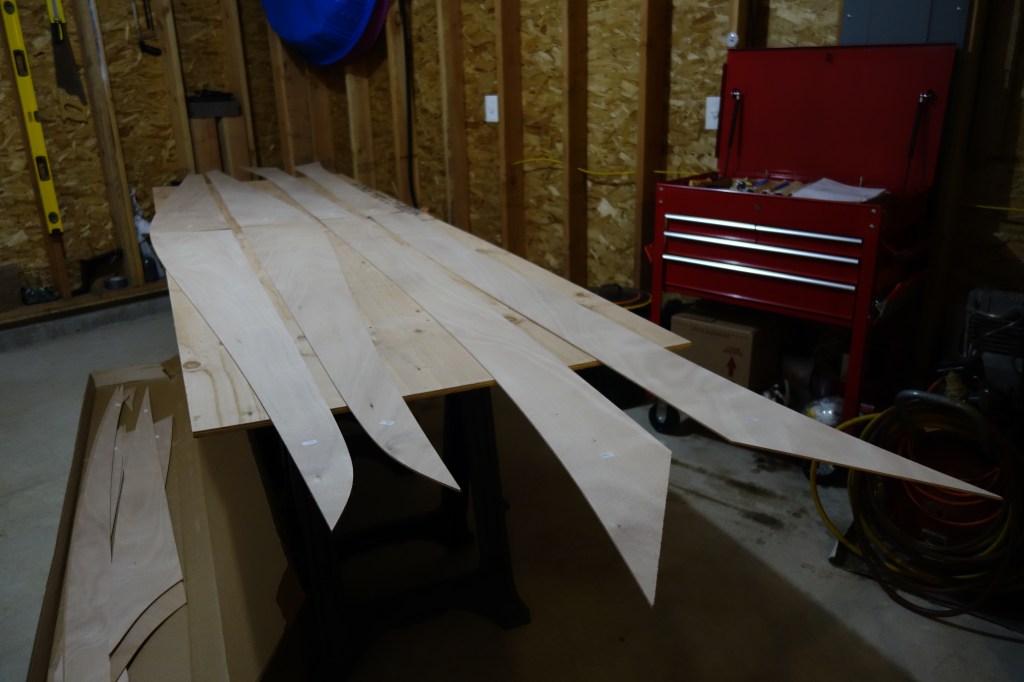

Starboard side panels glued to full length and out of the way so that the other side can be glued.
Starboard side panels.

Hull panels laid out.

Posted on by
Reply

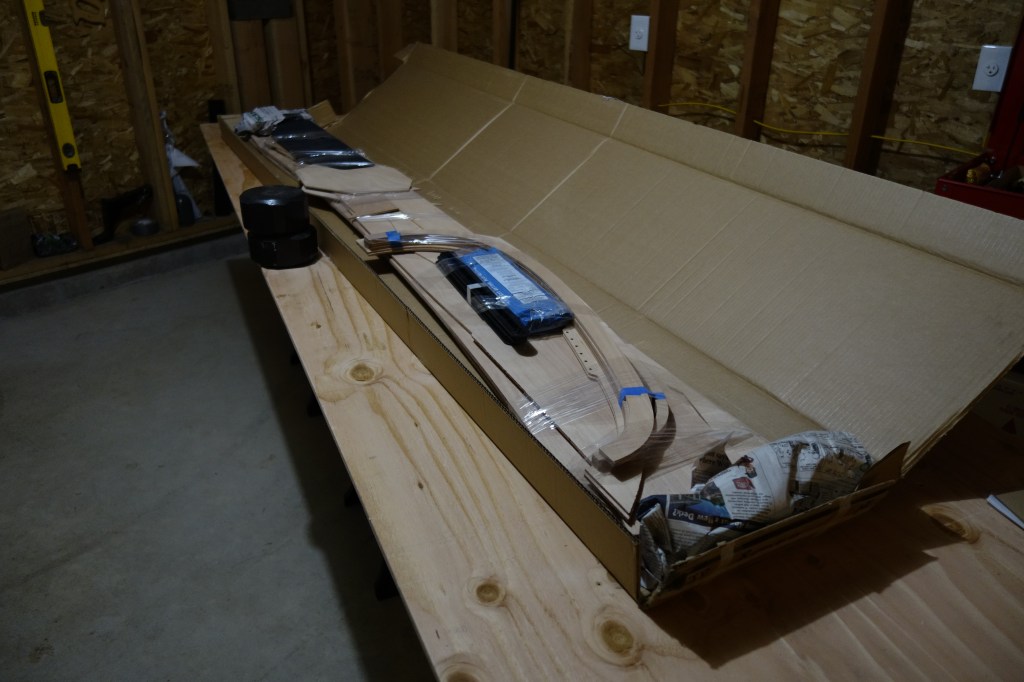

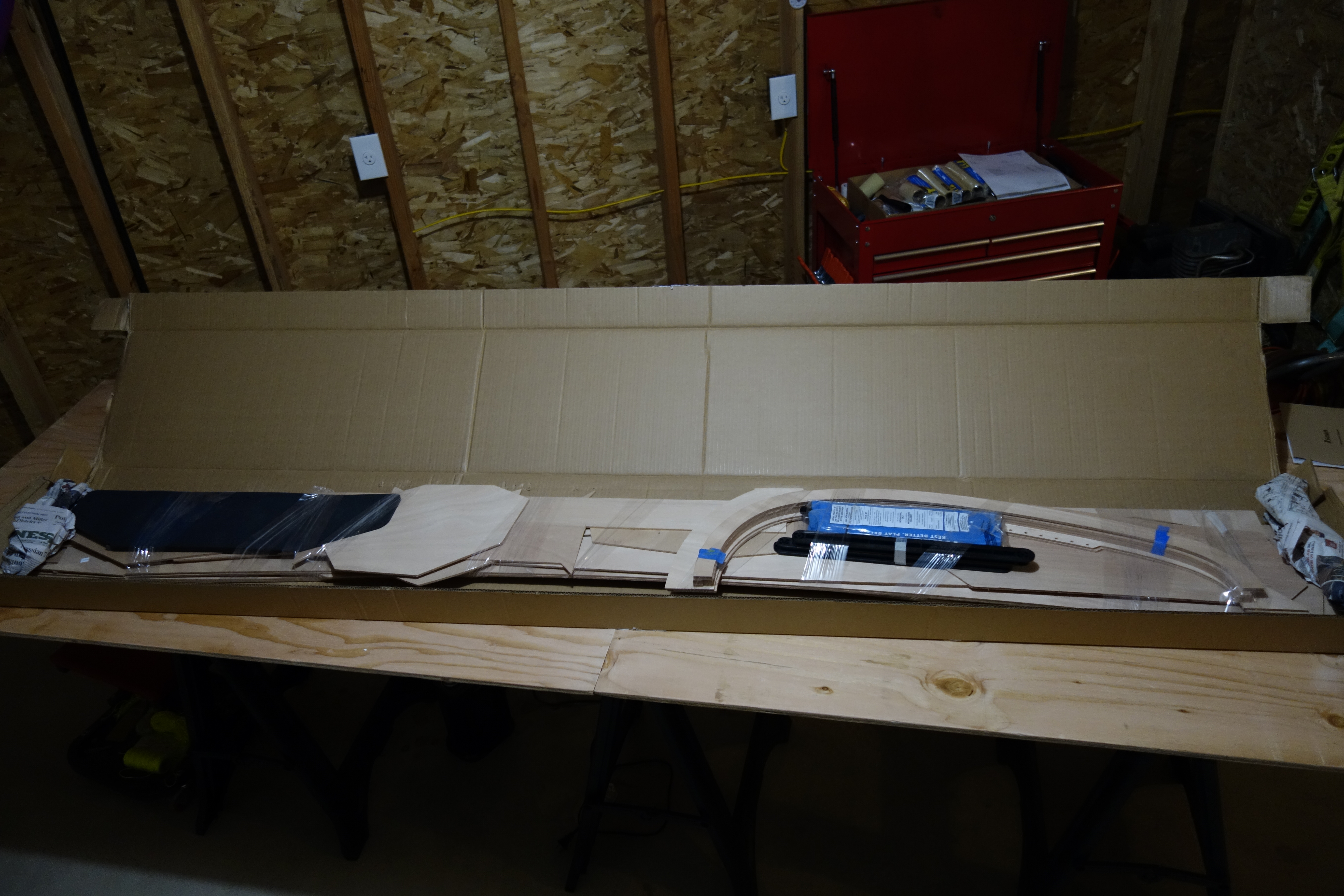

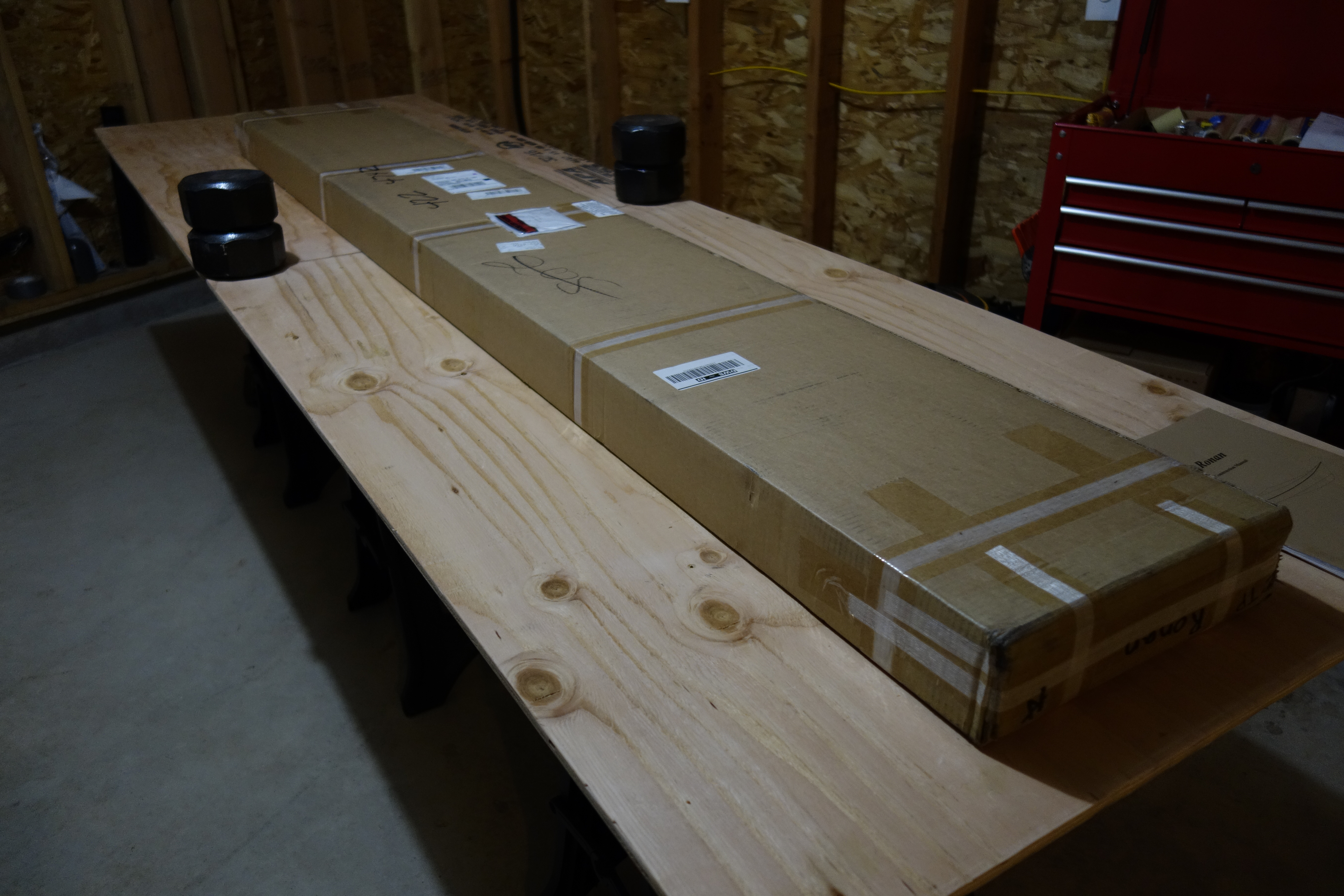

Hull panels out of the box and laid out, ready to be glued to their full lengths. You can see the deck panels still in the box on the floor. I will actually glue all of the panels for one side of the kayak at at time. I just had the hull panels for both sides on the table to look at the grain and kind-of get the “lay of the land.”
